Performance Analysis of Traditional VQA Models Under Limited Computational Resources

1. Introduction & Overview

This paper investigates the critical challenge of deploying Visual Question Answering (VQA) models in real-world, resource-constrained environments such as medical diagnostics and industrial automation. The core premise is that while large-scale transformer-based models dominate academic benchmarks, their computational footprint renders them impractical for edge deployment. The research systematically evaluates traditional, lighter-weight architectures—Bidirectional GRU (BidGRU), GRU, Bidirectional LSTM (BidLSTM), and Convolutional Neural Networks (CNN)—to identify configurations that optimize the trade-off between accuracy and efficiency, with a particular focus on handling numerical and counting questions which are often challenging for simpler models.

Core Insight

The paper's central argument is compelling and timely: efficiency is not merely a secondary concern but a primary design constraint for real-world AI. In an era obsessed with scaling parameters, this work serves as a necessary corrective, reminding us that optimal performance is context-dependent. The choice to focus on numerical/counting tasks is astute, as these often expose the weaknesses of models that rely on statistical correlation rather than genuine reasoning.

Logical Flow

The logic is methodical: 1) Establish the problem (resource constraints), 2) Select candidate models known for relative efficiency, 3) Systematically vary key hyperparameters (embedding dim, vocab size), 4) Evaluate on a task that stresses reasoning (counting), and 5) Use ablation studies to isolate critical components (attention). This is a classic, robust empirical research design.

Strengths & Flaws

Strengths: The hyperparameter sweep (vocab size, embedding dim) is a practical contribution for engineers. The ablation study validating the importance of attention mechanisms is well-executed. Focusing on BidGRU over more complex LSTMs aligns with findings from researchers like Cho et al. regarding GRU's comparable performance with fewer parameters.

Flaws: The paper's scope is narrow. Comparing only "traditional" models ignores a vast middle ground of efficient modern architectures (e.g., distilled transformers, efficient nets). The lack of a direct comparison against a tiny transformer baseline (e.g., MobileViT or a pruned version) is a missed opportunity to truly benchmark "state-of-the-art efficiency." Furthermore, the discussion of "computational resources" is vague—no concrete metrics on FLOPs, memory footprint, or inference latency are provided, which are crucial for deployment decisions.

Actionable Insights

For practitioners: Start with BidGRU-300-3000. The paper provides a clear, prescriptive configuration: a Bidirectional GRU with 300-dimensional embeddings and a vocabulary capped at 3000 words. This is a ready-to-use recipe for a baseline model in constrained settings. Secondly, do not skip the attention mechanism. The ablation study confirms it's non-negotiable for complex tasks, even on small models. Finally, the research underscores the need for task-specific optimization; a model optimized for overall VQA may fail on counting, so design your evaluation metrics accordingly.

2. Related Work & Background

The field of VQA has evolved from joint embedding spaces to sophisticated attention-based and transformer architectures. This section contextualizes the study within broader VQA and multimodal research.

2.1 Visual Question Answering (VQA)

Key foundational approaches include:

Spatial Memory Networks: Utilize multi-hop attention to align question words with image regions and refine evidence.
BIDAF (Bi-Directional Attention Flow): Creates query-aware context representations, improving context-query interaction.
CNN for Text: Replaces RNNs with CNNs for text feature extraction, offering parallelization benefits.
Structured Attentions: Models attention over image regions using Conditional Random Fields (CRFs) for better relational reasoning.
Inverse VQA (iVQA): A diagnostic task to evaluate model understanding by ranking candidate questions.

2.2 Image Captioning

As a closely related task, image captioning research informs VQA through mechanisms for vision-language alignment. Notable works include the "Show, Attend and Tell" model, which combines CNN, LSTM, and attention, and training techniques like Self-Critical Sequence Training (SCST) using reinforcement learning.

3. Methodology & Model Architectures

The core architecture follows a modular pipeline: Question Feature Extraction, Image Feature Extraction, Attention Mechanism, and Feature Fusion/Classification (as depicted in Fig. 1 of the PDF).

3.1 Question Feature Extraction

Four primary text encoders are evaluated:

Bidirectional GRU (BidGRU): Captures contextual information from both past and future token states.
Standard GRU: A lighter, unidirectional gated recurrent unit.
Bidirectional LSTM (BidLSTM): Similar to BidGRU but with a more complex cell state mechanism.
Convolutional Neural Network (CNN): Applies temporal convolutions over word embeddings to extract n-gram features.

The impact of vocabulary size and embedding dimension is a key variable under study.

3.2 Image Feature Extraction

While not detailed in the provided excerpt, standard practice involves using a pre-trained CNN (e.g., ResNet, VGG) to extract a grid of feature vectors from the input image, forming the visual representation $V = \{v_1, v_2, ..., v_k\}$, where $v_i \in \mathbb{R}^d$.

3.3 Attention & Fusion Mechanisms

An attention mechanism computes a weighted sum of image features based on the question embedding $q$. The attention weights $\alpha_i$ for each image region $i$ are typically computed as: $$\alpha_i = \text{softmax}(w^T \tanh(W_v v_i + W_q q + b))$$ where $W_v$, $W_q$, $w$, and $b$ are learnable parameters. The attended image feature is $\hat{v} = \sum_{i=1}^k \alpha_i v_i$. This $\hat{v}$ is then fused with $q$ (e.g., via concatenation or element-wise multiplication) before final classification.

4. Experimental Setup & Configuration

4.1 Dataset & Evaluation Metrics

Experiments are conducted on a standard VQA dataset (likely VQA v2.0). Performance is evaluated using overall accuracy, with particular analysis on subsets of numerical and "how many"-type counting questions.

4.2 Hyperparameter Analysis

The study systematically varies:

Vocabulary Size: Tested up to 3000 words.
Embedding Dimension: Tested, with 300 yielding optimal results.
Fine-tuning Strategies: Exploring which model components (e.g., CNN backbone) to fine-tune versus keep frozen.

5. Results & Performance Analysis

5.1 Overall Model Comparison

The BidGRU model with an embedding dimension of 300 and a vocabulary size of 3000 achieved the best overall performance. It effectively balanced the capacity to capture question context with a manageable parameter count, outperforming both simpler GRUs and more complex BidLSTMs in the constrained setting. The CNN text encoder, while fast, generally underperformed on tasks requiring longer-range linguistic dependencies.

Performance Summary

Top Configuration: BidGRU (Emb Dim=300, Vocab=3000)
Key Advantage: Superior accuracy on numerical/counting questions without the computational overhead of larger models.
Critical Finding: Attention mechanisms are indispensable for complex reasoning under constraints.

5.2 Ablation Studies

Ablation studies confirmed two critical points:

Importance of Attention: Removing the attention mechanism led to a significant drop in performance, especially for questions requiring spatial reasoning or object relationship understanding. This aligns with findings from the seminal "Show, Attend and Tell" paper, which established attention as a key component for detailed image understanding.
Role of Counting Information: Explicitly modeling or leveraging features conducive to counting (potentially through dedicated modules or loss functions) provided measurable gains on "how many" questions, highlighting the need for specialized inductive biases in constrained models.

6. Technical Details & Mathematical Formulation

The core of the BidGRU-based model can be formalized as follows:

Question Encoding: Given a sequence of word embeddings $[e_1, e_2, ..., e_T]$, a Bidirectional GRU processes them forward and backward: $$\overrightarrow{h}_t = \text{GRU}(e_t, \overrightarrow{h}_{t-1})$$ $$\overleftarrow{h}_t = \text{GRU}(e_t, \overleftarrow{h}_{t+1})$$ The final question representation $q$ is often the concatenation of the final states: $q = [\overrightarrow{h}_T; \overleftarrow{h}_1]$.

Visual Attention: As described in section 3.3, attention produces a context vector $\hat{v}$ focused on image regions relevant to $q$.

Fusion & Prediction: The combined representation $z = f_{fusion}(q, \hat{v})$ is passed through a multi-layer perceptron (MLP) to produce a distribution over possible answers: $p(a|I,Q) = \text{softmax}(\text{MLP}(z))$.

7. Analysis Framework & Case Study

Framework for Evaluating Efficient VQA Models:

Define Constraint Metrics: Before model selection, define the target operational envelope (e.g., max latency < 100ms on device X, memory < 50MB).
Architecture Search Space: Include not just traditional RNNs/CNNs but also modern efficient blocks (Depthwise Separable Convolutions, MobileNet blocks) and lightweight transformers (e.g., architectures from the Efficient Deep Learning community).
Task-Specific Evaluation: Beyond overall accuracy, create a benchmark suite with specific sub-tasks: Counting, Spatial Relations ("left of"), Attribute Recognition, etc.
Ablation Protocol: Systematically remove/add components (attention, bidirectional connections, specific fusion operations) and measure impact on both accuracy and efficiency metrics.

Case Study: Medical Imaging Assistant
Imagine deploying a VQA model on a portable ultrasound device to answer questions like "How many follicles are visible?" or "Is the mass >2cm?".
Application of this paper's findings: You would prototype with the BidGRU-300-3000 configuration. You would ensure the attention mechanism is active to allow the model to focus on specific anatomical regions. You would fine-tune the model on a dataset of medical VQA pairs, paying special attention to the performance on numerical/counting questions, potentially adding a auxiliary counting loss based on the ablation study insight.

8. Future Applications & Research Directions

Applications:

Edge AI in Healthcare: Diagnostic aids on mobile devices, patient monitoring systems with natural language queries.
Industrial IoT & Quality Control: Systems where workers can ask questions about assembly line images or defect analysis.
Educational Tools: Interactive learning apps that answer questions about diagrams or physical science setups in real-time.
Accessibility Technology: Advanced visual assistants for the visually impaired that answer complex contextual questions about the environment.

Research Directions:

Hybrid Efficient Architectures: Combining the parameter efficiency of GRUs with the dynamic capacity of Mixture of Experts (MoE) layers for conditional computation.
Neural Architecture Search (NAS) for VQA: Automatically discovering optimal model architectures under hard FLOPS/memory constraints, as seen in work by Google Brain on MnasNet.
Knowledge Distillation for Reasoning: Distilling the "reasoning ability" of a large teacher model (e.g., a ViT-based VQA model) into a much smaller student model like BidGRU, focusing particularly on numerical reasoning pathways.
Benchmarking Efficiency: Creating a standardized benchmark (like MLPerf Tiny) for VQA that reports accuracy alongside latency, energy consumption, and model size across diverse hardware.

9. References

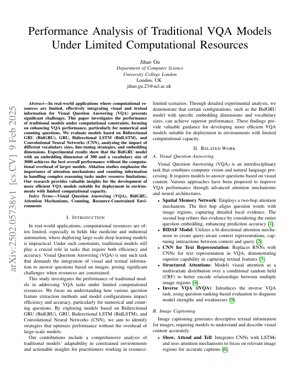

J. Gu, "Performance Analysis of Traditional VQA Models Under Limited Computational Resources," 2025. [Source PDF]
K. Cho et al., "Learning Phrase Representations using RNN Encoder-Decoder for Statistical Machine Translation," arXiv:1406.1078, 2014.
K. Xu et al., "Show, Attend and Tell: Neural Image Caption Generation with Visual Attention," International Conference on Machine Learning (ICML), 2015.
M. Sandler et al., "MobileNetV2: Inverted Residuals and Linear Bottlenecks," IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), 2018.
M. Tan and Q. V. Le, "EfficientNet: Rethinking Model Scaling for Convolutional Neural Networks," International Conference on Machine Learning (ICML), 2019.
A. Vaswani et al., "Attention Is All You Need," Advances in Neural Information Processing Systems (NeurIPS), 2017.
P. Wang et al., "Multi-Modal Knowledge Distillation for Efficient Visual Question Answering," European Conference on Computer Vision (ECCV) Workshops, 2022.
V. Mnih et al., "Recurrent Models of Visual Attention," Advances in Neural Information Processing Systems (NeurIPS), 2014.
